Capacitors are vital components in electric vehicle fast charging stations. They store energy to keep power conversion smooth. During AC/DC and DC/DC processes, they help balance voltage and current changes. In high-power systems like EV chargers, capacitors act as a quick energy reserve. This reserve manages sudden shifts in load or input power.

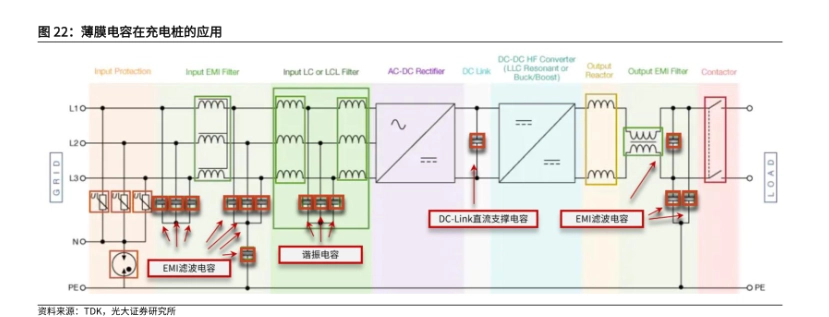

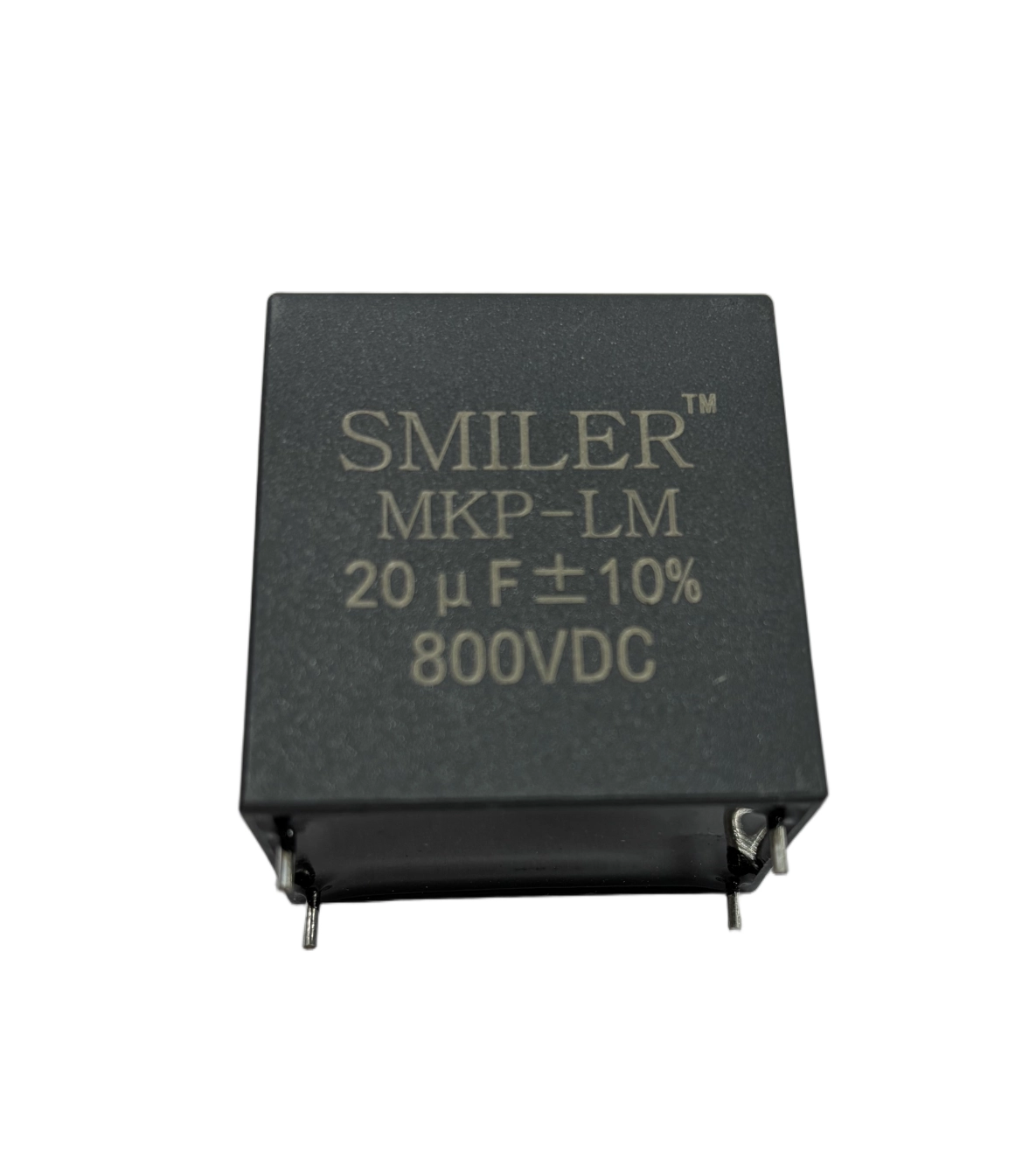

In the whole EV Fast Charger, there are several places where our capacitors are used: DC Link, AC/DC Rectifier, and DC/DC HF Converter. This shows how critical they are at every step. Capacitors keep the energy flowing steadily, ensuring chargers work efficiently.
Stable voltage is key for reliable charging and protecting sensitive parts. Capacitors control voltage by storing and releasing energy when needed. If loads shift or switch toggle, capacitors jump in. They prevent voltage drops or spikes. This keeps the output consistent.
DC link capacitors are especially crucial. They steady the voltage between AC/DC rectification and DC/DC conversion. Without enough capacitance, voltage swings could cause inefficiencies or system crashes. A solid DC link ensures smooth, dependable charging.
Yes, capacitors do a great job cutting harmonics and ripple currents. These can hurt performance or damage equipment. Harmonics come from non-linear loads, like switching converters, causing high-frequency distortions. Ripple is the small, constant wobble in DC output.
Capacitors filter out these unwanted signals. This boosts power quality and protects other components. The DC Link MKP-LL Series from SMILER, designed for DC filtering and smoothing applications with capacitance values ranging from 170μF to 2200μF and rated voltages from 600V to 1500Vdc, is ideal for this task. It delivers cleaner power and longer-lasting systems.
The DC link is a central part of fast charging stations. It links the AC input, after rectification, to the DC/DC converter on the output side. It serves as a temporary energy storage area. This area holds power before it reaches the vehicle's battery.
In the whole EV Fast Charger, there are several places where our capacitors are used: DC Link, AC/DC Rectifier, and DC/DC HF Converter. Each part relies on strong capacitors to perform well. The DC link ensures energy moves efficiently through the system.
A stable DC link keeps energy transfer smooth. It handles changes in input voltage or output load. Without stability, you might face oscillations or overvoltage issues. These can lead to inefficient switching or overheating. This could damage parts like IGBTs.
Stability also improves efficiency. It reduces energy loss during conversion. Plus, it lowers stress on components, making the system safer and more reliable for heavy use.
Film capacitors are top picks for DC link tasks. They have low Equivalent Series Resistance (ESR) and handle high ripple currents well. SMILER's MKP-LL Series capacitors are designed for this role. They feature high energy density, and low ESR, and work across a wide voltage range (600V–1500Vdc). These qualities make them perfect for the tough demands of EV fast charging stations. They manage high power and fast switching with ease.
In high-frequency setups, like those in EV chargers, quick switching can cause stray oscillations. These come from circuit inductance. The oscillations create voltage spikes. Such spikes can push components past their safe limits, risking damage.
Snubber capacitors fix this. They offer a safe path for transient energy. This stops oscillations and protects parts like IGBTs from overvoltage harm.
Snubber capacitors soak up extra energy during switching. This prevents dangerous voltage spikes. They form part of an RC (resistor-capacitor) or RCD (resistor-capacitor-diode) snubber network across switching devices.
This setup safely handles transient energy. It keeps switches operating within safe limits. As a result, performance improves, and components last longer.
Reliability is critical in EV fast charging stations. They run non-stop under heavy loads. Snubber capacitors prevent early failure of switches by reducing stress from repeated transients.
SMILER's MKPH-S Series snubber capacitors are built for this. They offer capacitance values between 0.1μF and 4.0μF and rated voltages from 850Vdc to 2000Vdc. This boosts charger durability.
Choosing a capacitor for an EV fast charging station means checking several factors:
1. Capacitance value
2. Rated voltage
3. ESR (Equivalent Series Resistance)
4. Ripple current rating
5. Thermal resistance
6. Dielectric type
These factors determine how well a capacitor handles the stresses of fast charging.
To pick the right capacitor, know your system's needs. Look at voltage levels during peak loads, ripple currents, and operating temperatures. Choose a capacitor with ratings that go beyond these needs, leaving room for safety.
For instance:
1. Use higher capacitance for more energy storage.
2. Pick higher voltage ratings for frequent transients.
3. Choose low ESR types to keep the heat down.
SMILER's MKP-LL Series offers options tailored for EV charger needs. They meet these demands with precision.
Capacitor reliability affects charger uptime and maintenance costs. Components should pass tough tests, like those for automotive standards such as AEC-Q200 or IEC specs for temperature and humidity resistance.
At SMILER, we focus on advanced film capacitor solutions. These are made for tough industrial uses, like electric vehicle systems, including onboard chargers (OBCs), traction systems, renewable energy converters, and fast charging stations. Our expertise delivers reliable performance in demanding settings.

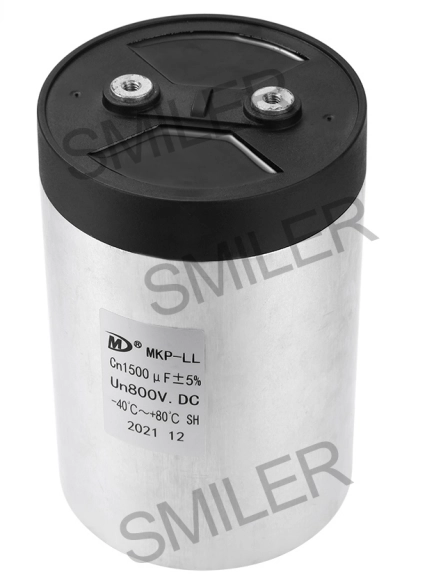

The MKP-LL Series includes:
1. Capacitance range: 170μF–2200μF
2. Voltage range: 600V–1500Vdc
3. Low ESR design
4. High ripple current handling
5. Long operational life under thermal stress
These features make the MKP-LL Series great for smoothing power at the rectifier output or stabilizing voltages before the battery. They ensure efficient power delivery with minimal losses or overheating risks. This leads to dependable, high-performance charging.

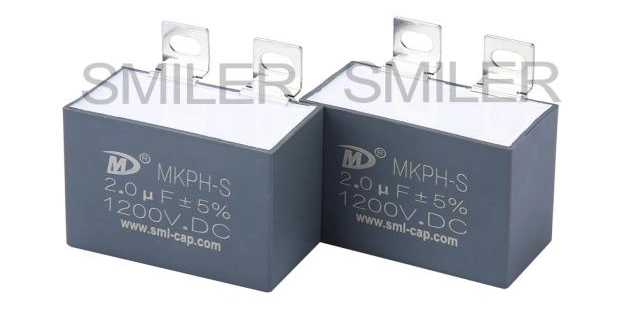

The MKPH-S Series offers:
1. Capacitance range: 0.1μF–4.0μF
2. Voltage range: 850V–2000Vdc
3. Excellent pulse absorption capability
4. High dV/dt tolerance
5. Superior thermal endurance
These snubber capacitors protect IGBT modules in AC/DC rectifiers and DC/DC converters. They guard against transient spikes, ensuring switch reliability over many charge cycles. This is vital for public EV charging systems.
Q: What does a capacitor do in an electric vehicle fast charging station?
A: It stores energy briefly to keep the voltage steady during power conversion, like AC/DC rectification or DC/DC transformation.
Q: Why is a DC link capacitor important?
A: It stabilizes voltages between rectification stages. Without it, voltage swings could lower efficiency and harm converters.
Q: What type of capacitor should be used near high-frequency switches?
A: Snubber capacitors with high pulse current tolerance work best. They protect switches like IGBTs from fast-switching transients.
Q: How do you select a reliable capacitor for EV chargers?
A: Check rated capacitance and voltage, ensure low ESR, verify thermal performance, and look for certifications like AEC-Q200.
Q: Can using poor-quality capacitors affect charger lifespan?
A: Yes, low-quality capacitors may fail under stress, causing downtime or damage to other parts due to weak filtering or protection.
