Input capacitors in buck converter circuits help keep the voltage steady during quick switches and changing loads. Their main job is to act as a nearby energy store. This store gives current during switch changes in the buck converter. As a result, it cuts voltage drops or jumps on the input line.
These capacitors take in high-speed current bursts from the switch transistor. This keeps the input voltage even and within set limits. Without enough input capacitance, the voltage can swing a lot. This leads to poor work or even the breakdown of key downstream parts. Such steady power matters most when the supply powers digital or RF items. There, voltage swings can cause big problems.
Input capacitors also cut electromagnetic interference (EMI) and switch noise well. During fast switch events, quick current shifts can make voltage jumps and send-out signals. This happens from unwanted inductances in PCB lines.
Well-chosen capacitors with low Equivalent Series Resistance (ESR) and low inductance give a low-resistance way to ground for high-speed noise. This cuts both the carried and sent EMI. They also guard the power supply and linked devices from short voltage changes. These can come from coil loads or long input wires. So, input capacitors do more than steady voltage. They also help meet EMI rules.
Picking the wrong capacitor type can cause early breakdown of the capacitor or harm to the buck converter circuit. This happens if it handles too little ripple current, has the wrong ESR, or lacks enough voltage hold. For instance, electrolytic capacitors with high ESR can get too hot under steady high ripple. Ceramic capacitors can crack if not set right for heat and voltage.
Also, wrong capacitance amounts can lead to weak short-response or instability in the converter's control loop. So, a careful look at capacitor specs is needed. This ensures good work and long life for the full system.
Picking the right input capacitor for a buck converter means knowing the good and bad sides of the main types. These include ceramic, tantalum, and aluminum electrolytic capacitors. Each has different electrical traits and build features. They fit certain job needs.
Ceramic capacitors see wide use for their low ESR and ESL (Equivalent Series Inductance). This makes them strong at cleaning high-speed noise. Their small size and steady work over heat ranges fit tight-space designs. Think of portable electronics.
But ceramic capacitors can feel mechanical stress. They also lose capacitance under DC bias. Designers must think of these when figuring the real total capacitance.
Tantalum capacitors give better space use than aluminum electrolytics. They stay steadier than ceramics under DC bias. They often have medium ESR values. This can help calm control loop rings.
Tantalums fit jobs that need steady capacitance over time and heat. Examples include medical tools or telecom gear. But they feel surge currents. They must be set right to avoid a big failure.
Aluminum electrolytic capacitors stay useful despite being older tech. They give high capacitance at low cost. They work well in jobs that need a big energy store and an okay ripple clean.
Their higher ESR limits them to very high speeds. But they often pair with ceramic capacitors. This balances work and price. Aluminum types also last long when cooled and set correctly.
ESR matters a lot when picking input capacitors for buck converters. It affects ripple voltage and heat spread right away. Low ESR cuts ripple voltage at the input spot. This raises the voltage steadily and lowers stress on later parts.
But an ESR that is too low can cause control loop shake, especially with fast-switch transistors. So, a mixed ESR level works best. This often comes from linking different capacitor types. For example, ceramics with electrolytics. It keeps the system steady without losing noise cut.
The voltage rating of an input capacitor must go over the top expected input voltage by a safe margin. This gap is often 20–30%. It handles voltage jumps and guards against dielectric break. For example, if your buck converter runs from a 12V supply, a capacitor rated at 16V or 25V is usual.
For ceramic capacitors, think of DC bias loss too. A 25V-rated ceramic can lose much of its capacitance near its rating. So, pick a higher voltage and capacitance to be safe.
The needed capacitance amount ties to load current, switch speed, and acceptable input ripple voltage. A basic formula is:
Cmin = Iout × D / (f × ΔVin)
Where:
l Iout = Output current
l D = Duty cycle
l f = Switching frequency
l ΔVin = Allowable input ripple
This formula sets the least capacitance to hold ripple within bounds. In real use, add extra room for part differences and age effects.
Heat work affects the input capacitor life right away. Capacitor life follows the Arrhenius equation. For every 10°C rise in temperature, life cuts in half. So, pick parts with wide heat run ranges. This ensures lasting in tough spots.
DC Link MKP-LM capacitors show good over-voltage and over-current hold. They also bring high trust and long life. These traits fit hard jobs like factory frequency changers or car power electronics. There, steady work over the years is key.
Input capacitors matter in small devices like smartphones and wearables. Power must be good and quiet there. Ceramic capacitors often fit due to their small size and high-speed clean skills.
IoT points often use buck converters to drop battery voltages. Input capacitors keep running steadily despite often waking-sleeping cycles that change loads. Ceramic types lead here due to size limits.

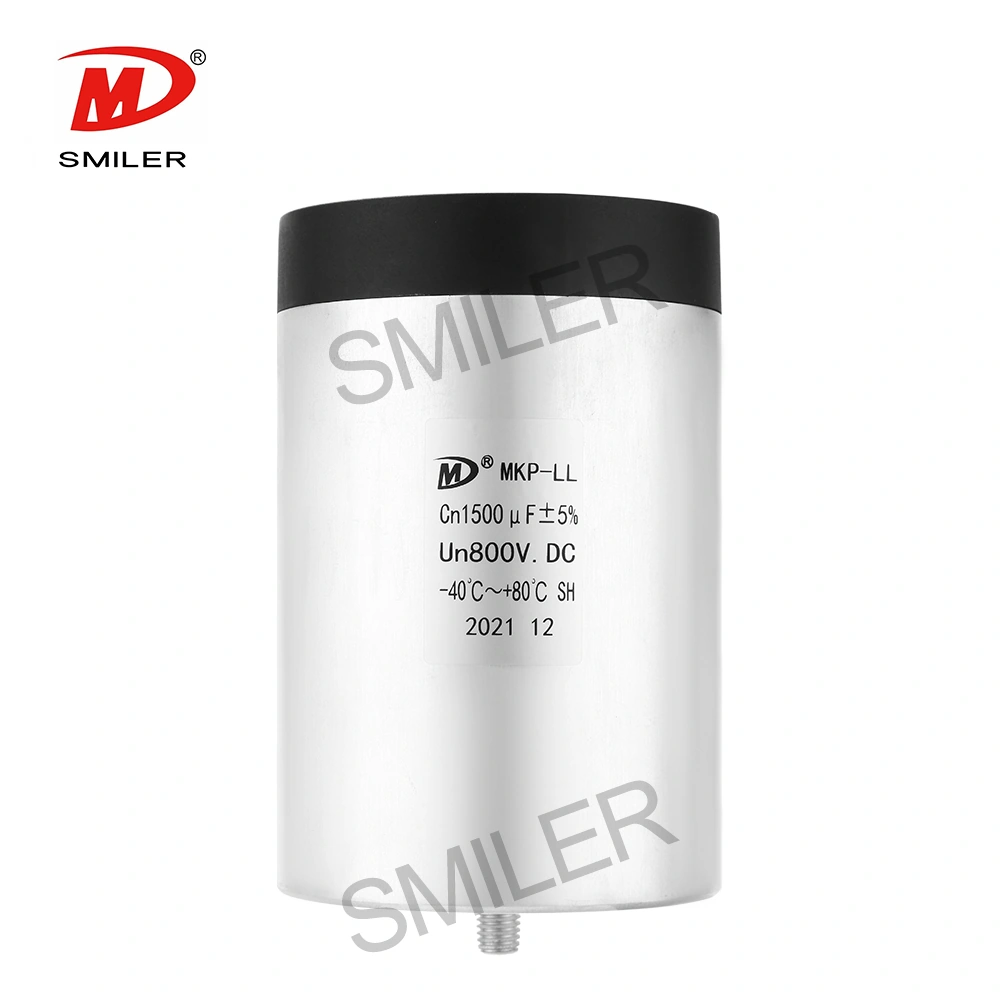

Factory motor drivers often use buck converters for extra power supplies. Used in DC-Link circuits, SMILER's MKP-LL capacitors give low ESR, high ripple current hold skills, self-healing traits, and long life. These help steady running in shake-heavy spots like elevators or robotics.
LED light systems count on steady-current buck converters from AC-DC front ends. Steady input capacitors cut flicker. They hold back high-speed noise and line shakes.
Electric vehicles need top trust from power handling systems. DC Link MKP-LM capacitors fit in car DC-DC converters. They bring big capacitance, small size, high trust, self-healing trait, and long life.
To keep audio/video output without breaks, infotainment units need low-ripple power supplies. Ceramic and tantalum capacitors together make good, clean networks. They hold clean power even during engine start or short loads.
SMILER focuses on new film capacitor answers. They build through top auto plants that ensure good work, exactness, and consistency. This cuts production steps and holds tight quality checks. Their way gives a pass rate of over 99.93% for completed products. This comes on a daily production of 300,000 products.
Low ESR brings strong ripple current hold skills. This makes these capacitors fit for today's fast buck converter jobs. There, noise cut is key.
Run heat ranges from -40°C to +105°C, let SMILER's capacitors work steadily in the car hood or outside factory spots.
High trust and self-healing traits add to long-term life. This cuts upkeep costs over time. It is a key trait for new energy systems or factory auto gear.
In one motor driver system for an elevator control unit, SMILER's DC Link MKP-LL capacitor was picked for its low ESR and high ripple current holding skills. After more than 10,000 hours of steady run under changing load states, the system kept working steadily without loss. This proved both the quality and the planned way.
A: Think of points like voltage rating with extra room, needed capacitance from load current and ripple hold, ESR values for steady and noise cut, plus heat range for trust. Linking ceramic with electrolytic or film capacitors can balance work over speed ranges.
A: Multilayer ceramic capacitors (MLCCs) lead due to low ESR/ESL traits and small size. They fit high-speed switch spots in new DC-DC converters.
A: High ESR raises ripple voltage. Low ESR can cause the control loop to be unsteady. Picking a mixed ESR level keeps running steadily without too much heat or noise.
A: Ceramics shine at high-speed cleaning but lack a big store. Electrolytes give higher capacitance but higher ESR. Often, both pair use their strong sides.
A: Brands like SMILER give high-trust film capacitors such as the MKP-LL and MKP-LM series. They have self-healing traits, long life, and good ripple current hold. This fits hard factory or car jobs.
