Unveiling the Mechanics of Snubber Condensator in Power Systems

What Makes the Snubber Condensator Essential in Power Systems?

The Role of Snubber Capacitors in Protecting IGBT Modules

In the field of power systems management keeping parts safe such as Insulated Gate Bipolar Transistors (IGBTs) is a vital responsibility. Crafted to soak up surges and temper voltage surges these capacitors shield IGBT components from harm brought on by rapid switching and sudden voltage changes.

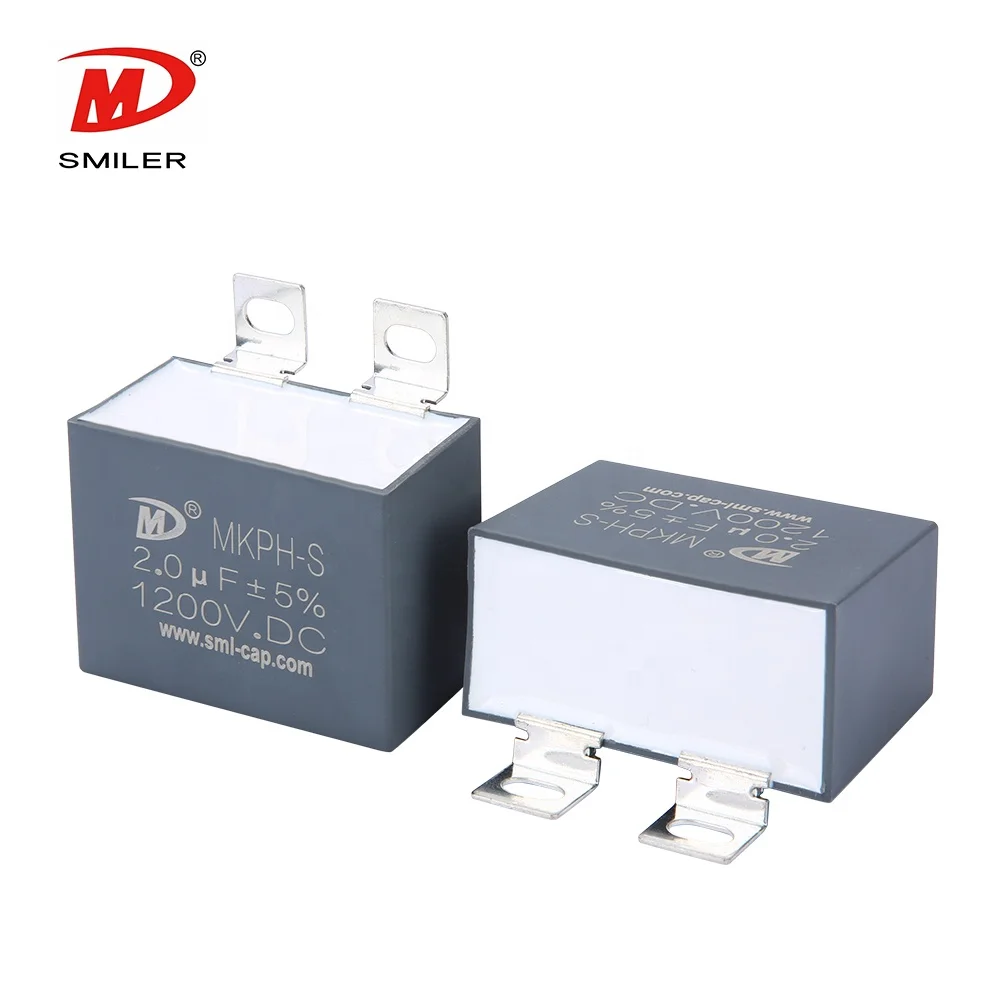

The MKPH-S Snubber Capacitor from SMILER serves as an illustration of this kind of safeguard measure in electronics components protection systems. It’s tailor-made to absorb surges in IGBT buffer circuits and effectively guarantee dependability and prolonged longevity. The capacitor comprises a polypropylene film as its core material and is encased in a robust plastic shell package for lasting durability. Additionally, it includes resin filling with UL94 V-0 rating which provides flame retardant capabilities. These characteristics render it essential for use, in switch mode power supplies and IGBT snubber applications.

The MKPH-S Snubber Capacitor is known for its pulse intensity and effective self-repair capabilities crucial for preserving circuit integrity during challenging situations. By reducing the impact of voltage fluctuations this capacitor boosts the longevity of IGBT modules. Guarantees reliable performance over time.

How Snubber Condensation Enhances Circuit Performance

In addition to their protective benefits, snubber capacitors also have an impact on circuit performance improvement through effective management of high-frequency switching without affecting efficiency in contemporary power system operations. The capacitors find a crucial application when combined with IGBT modules since they assist in reducing electromagnetic interference (EMI), as well as reducing energy waste during switching operations.

SMILER’s MKPH-S Snubber Capacitor can work effectively in temperatures ranging from 40°C to +105°C. It meets the standards outlined in GB/T 17702. 2021 (IE 61071; 2007) making it ideal for challenging settings. It has a capacitance range of 700VDC to 3000VDC and can fulfill a broad spectrum of design specifications.

As they help in the better distribution of energy and minimization of circuit vibrations, these capacitors guarantee smoother performance and higher efficiency. This is especially advantageous in scenarios such as energy setups and industrial motor controls where consistency and dependability are crucial factors.

Why Choose SMILER’s Snubber Condensation?

When choosing a snubber capacitor for your power system requirements, SMILER’s snubber capacitors stand out for their performance and reliability that surpass industry norms. Equipped with flame retardant capabilities and reliable self healing properties these capacitors are designed to provide optimal performance even in difficult situations.

Furthermore, SMILER offers specifications and installation options to meet a wide range of design needs. Whether you’re tackling a project or a large-scale industrial, the variety of snubber capacitors guarantees that you’ll find the perfect match for your requirements.

How Does an IGBT Snubber Capacitor Work?

The Mechanism Behind Voltage Suppression in Power Systems

Voltage spikes and surges present power system challenges and are capable of undermining the operating efficiency of critical devices like Insulated Gate Bipolar Transistors. The IGBT snubber capacitor proves useful for this – also referred to as the snubber condensator – to assist in controlling voltage fluctuations and save circuits from possible damage.

SMILER’s MKPH-LS Snubber Capacitor stands out among products in this category. It is made by winding metalized polypropylene film, encapsulated with Mylar tape and led out with tin-plated copper wire, copper plug or flexible wire. It is used for absorption protection, peak voltage clamping and other applications in various inverter system switch modules (IGBT), such as inverters and frequency converters.

Managing Energy Dissipation with Snubber Condensators

Addressed in a manner by snubber capacitors is the management of excess energy to avoid overheating and potential harm to electronic parts during power system switch operations. SMILER’s snubber capacitors demonstrate performance in this area due to their strong pulse capability and effective self-recovery attributes. These characteristics enable it to absorb energy spikes with ease without compromising its overall quality or performance.

By controlling the dissipation of energy and nuisance oscillations within circuits, snubber capacitors play a vital role in stabilizing and strengthening overall systems’ stability and dependability. The role is most critical in setups like renewable power installations, switch mode power supply and industrial motor controls.

Why Choose SMILER’s Snubber Condensator for Your Applications?

Key Features of SMILER’s IGBT Snubber Capacitors

High Reliability and Longevity in Demanding Environments

When working with power systems and controlling devices like Insulated Gate Bipolar Transistors (IGBTs) reliability is of the highest concern. SMILER’s snubber capacitors are designed to provide the utmost reliability in stressful conditions with precision engineering at their heart. Made with polypropylene film for the dielectric material ensures strong pulse capability and impressive self-healing capabilities to withstand voltage fluctuations and electrical stress factors effectively for extended operational longevity.

Compact Design for Space-Constrained Applications

In today’s power systems industry there is a challenge of limited space leading to a high demand for compact component designs. To tackle this issue SMILER offers the MKPH-S Snubber Capacitor, which is known for its space saving design. Despite being small in size, this capacitor maintains top notch performance and longevity. It comes in specifications and can be installed in different ways to meet diverse design needs effectively. This versatility makes it a great option for situations where space is limited, like in energy setups and industrial motor operations.

Opting for the SMILER’s snubber capacitor gives you the advantage of taking advantage of a product that seamlessly combines cutting-edge engineering with availability. Whether you are protecting IGBT modules or optimizing circuit efficiency overall in your application scenario, this capacitor ensures performance to meet your individual needs.

Frequently Asked Questions about Snubber Condensator

Q: What is the purpose of a snubber capacitor?

A: Snubbers are used to minimize current / voltage spikes, limit dV/dt, or di/dt, reduce losses due to switching action. Main purpose of snubber capacitor is to prevent unwanted sudden voltage rise across SCR during switching-on and by keeping dV/dt within SCR design limits.

Q: What is the function of a snubber in the compressor?

A: Pressure gauge snubbers will prolong the life of pressure gauges greatly in rigorous applications such as on reciprocating compressors and pumps, hydraulic presses or fluid power units and also improve the accuracy of the gauge reading.

Q: Why is low ESR critical for snubber capacitors in high-frequency circuits like DC/DC converters?

A: Low ESR minimizes power loss and heat generation with high-rate charge/discharge cycles, critical in snubber capacitors that handle high-frequency noise. High ESR increases ripple current-heating, shortening capacitor life. Snubber circuits employ low ESR to efficiently shunt voltage spikes and control output in switching converters.

Q: How do snubber capacitors prevent voltage surges in power circuits?

A: Snubber capacitors dissipate high-frequency energy spikes by offering a low-impedance path. They are designed with self-resonant frequency in mind to match noise frequencies. Parallel discharge resistors dissipate stored energy safely without residual voltage hazards. For reliability, capacitors should be able to withstand surge voltages without degradation.
