What Should You Know About Filter Capacitor Replacement in Electronics?

The Role of Filter Capacitors in Electronics

How Filter Capacitors Work in Circuits

Filter capacitors have a function in electronic circuits as they help decrease interference and maintain stable voltage levels. They are created to eliminate frequencies or regulate voltage changes to ensure devices run smoothly. These capacitors store energy for a temporary period and release it when necessary to balance out any power flow imbalances efficiently.

In AC systems and configurations with AC, filter capacitors are used to cope with high-frequency harmonics to have a stable and consistent quality of power supply. For DC applications and DC circuits, the capacitors are often applied in the construction of DC link in place of electrolytic capacitors due to their advantages, such as low Equivalent Series Resistance (ESR) capability to withstand high ripple current effectively and possessing the self-healing characteristic that improves their lifespan. The DC Link MKP-LL capacitor is constructed for such applications, utilizing a metalized polypropylene film and aluminum shell case.

Common Applications of Filter Capacitors

Filter capacitors find extensive use in a variety of industries owing to their reliability and versatility. Filter capacitors find applications in significantly enhancing the energy conversion in renewable energy systems, including wind power and solar power inverters by reducing electrical interference. Filter capacitors are also employed in transport applications, including Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs), to provide a steady power source for motor driving operations.

In factory and manufacturing environments, filter capacitors are employed on motor control and welding machine lifts to function even when there is fluctuation of loads. The DC Link MKP-LM stands out particularly due to its use in industrial and high-end power supplies and its ability to effectively manage high-frequency harmonics. Key characteristics of the capacitor are heat dissipation, light weight and intrinsic protection against over-pressure for improved reliability.

What Are the Signs That a Filter Capacitor Needs Replacement?

Recognizing Performance Issues in Electronics

One sign that a capacitor might need to be replaced is when the electronic device it helps operate starts to function erratically. Like making more noise than usual or having unstable voltage levels or frequent malfunctions. For example, if an inverter or a motor driver system is acting strangely or not working efficiently as before, it could be a signal that the capacitor is failing.

Furthermore, gadgets that depend on control of power, like electric vehicles or renewable energy converters. Might face significant disturbances if their filter capacitors deteriorate. These disturbances could result in a power supply or the overheating of parts.

How to Approach Filter Capacitor Replacement Safely?

Tools and Precautions for Replacing Capacitors

To safely and successfully replace a filter capacitor, you need to prepare and be ready with the necessary tools. Before starting the task, ensure that you have a multimeter, soldering iron, desoldering pump or insulated wick gloves handy. They are crucial in stripping out the current capacitor and installing a replacement.

It's crucial to prioritize safety measures at all times when dealing with devices like this one. Make sure to unplug the device and remove any remaining charge from the capacitor before touching it. Capacitors can still hold charges even when turned off, which can be dangerous for electric shocks. Use a screwdriver with insulation to release the charge by connecting its terminals.

Make sure to work in a lit space with good ventilation when dealing with the circuit board for better visibility and safety precautions—avoid loose clothing or accessories near the circuit and check the capacitor specifications to match your device accurately.

Why Choose SMILER for Your Filter Capacitor Replacement Needs?

Overview of SMILER's Product Range in Filter Capacitors

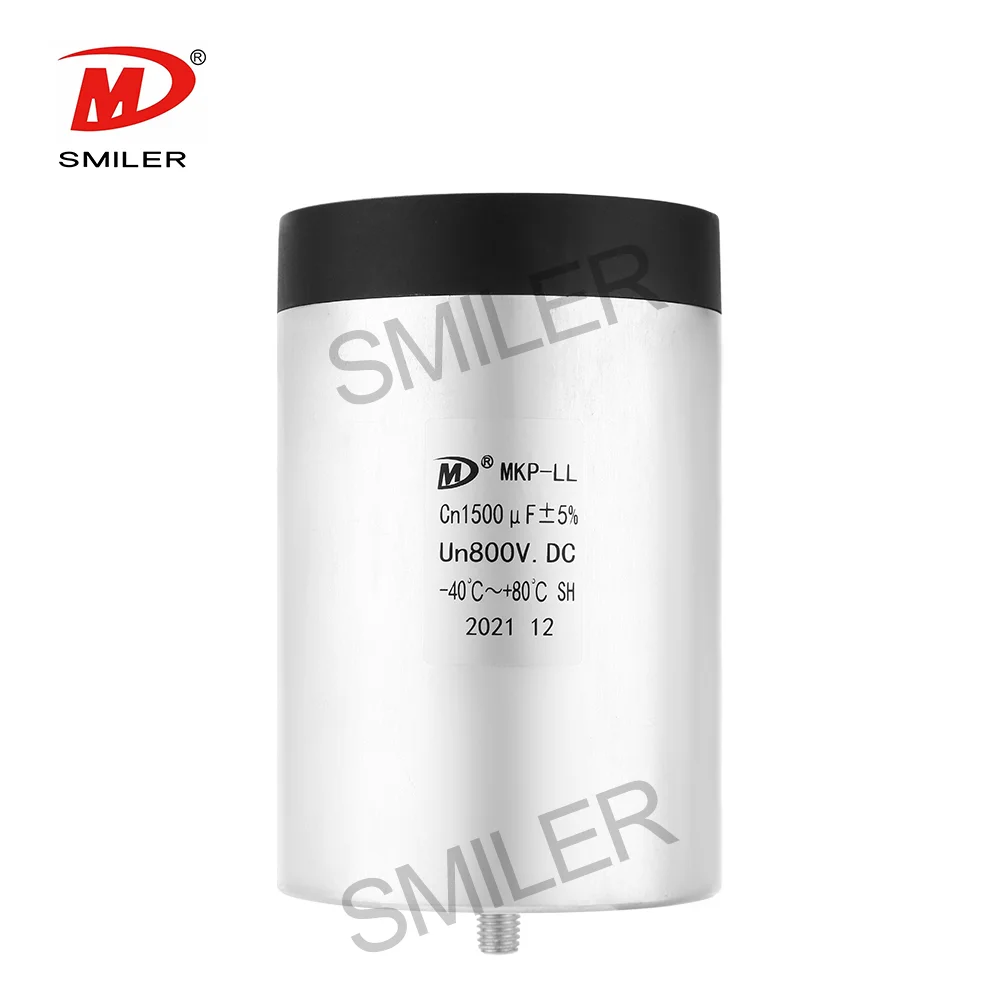

When needing to replace filter capacitors, it's crucial to have a selection of dependable and top-notch products available for use. SMILER has an array of filter capacitors that are designed to meet the diverse needs of contemporary electronic systems available in the market. One of them is the DC Link MKP-LL, which is specifically used for mounting in DC link circuits. The capacitors contain a polypropylene film core and an aluminum shell housing for the purpose of long-lasting function and operation.

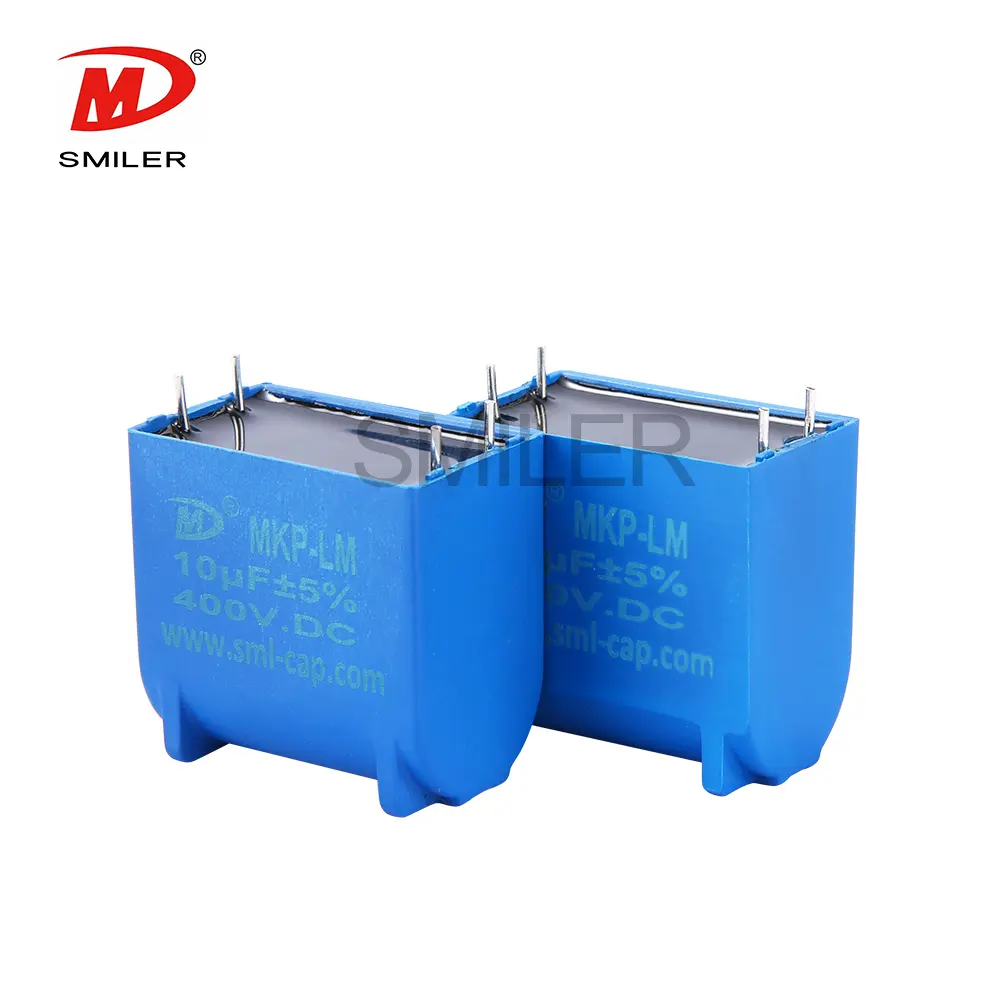

SMILER offers the DC Link MKP-LM specifically designed for automobile DC-DC and solar inverters. This particular product is renowned for its heat distribution capabilities, reduced weight and dual protective features, comprising a secondary protective system alongside an embedded over-pressure safety cut-off mechanism.

In addition, SMILER offers a series of capacitors, among them being the MKP-AM specifically intended for output AC filtering in power converters and UPS systems. SMILER offers capacitors with features like high capacitance, compact size, excellent, over-voltage resistance and self-repair. By offering a variety of products, SMILER guarantees customers to be able to identify the ideal solution to fit their requirements.

Key Features and Benefits of SMILER's Replacement Solutions

High-Quality Standards in SMILER Products

SMILER boasts a high quality standard in its range of filter capacitors. One such example of that high quality level is the DC-Link MKP-LL capacitor due to its low Equivalent Series Resistance, high ripple current capacity and self-recovery feature. Not only do these traits harden the capacitor, but also enhance the performance of the electronic gadget. Whether the capacitors will be used in renewable energy sources or transportation systems like EVs and HEVs, they give consistent performance under harsh conditions.

Compatibility with Various Electronic Devices

SMILER’s filter capacitors offer a benefit in their ability to work well with a variety of electronic devices and applications. For example, the DC Link MKP-LM is designed for use in power compensation, power systems, energy storage equipment and different low-to-voltage parallel circuits. Its versatility is a great trait to use in areas where reliability is paramount.

CBB65 capacitor is used for powering and stabilizing single-phase motors of domestic appliances, i.e., air conditioners and washing machines or dishwashers. Its standout features include its capacitance levels and it possesses an internal explosion proof for added cautionary measure.

SMILER provides a range of products for a range of applications – everyday application to special application – to help users realize maximum performance in areas, including utilization of renewable energy, performance of industrial machinery, and functioning of domestic appliances.

Frequently Asked Questions about Filter Capacitor Replacement

Q: How do I know when to replace a filter capacitor?

A: Replace it if you notice power instability, buzzing noises, or bulging or leaking visible. Multimeter testing will confirm reduced capacitance or failure to hold a charge.

Q: Can I replace a filter capacitor with a higher voltage one?

A: Yes, a higher voltage-rated capacitor is safe and sometimes beneficial. Just be sure the microfarad (μF) rating is the same as the original for correct circuit operation.

Q: What is the typical lifespan of a filter capacitor?

A: Filter capacitors usually have a lifespan of 5–15 years depending on operating temperature, voltage stress, and quality. Heat and ripple currents are the main culprits shortening lifespan.

Q: Are filter capacitors interchangeable between brands?

A: Yes, given voltage, capacitance, and physical size are the same. Always check polarity and dimensions before replacing them, and choose a reliable brand for better durability.
