Electric vehicles (EVs) need steady direct current (DC) voltage to work well, stay safe, and save energy. Changes in voltage, called ripple or noise, can mess up how different parts of an EV work, like the motor or battery system.
If DC voltage isn't smooth, you get voltage ripple. These are tiny, quick changes in the voltage level. They can make sensitive electronics act weird. This lowers energy savings. It can also wear out parts faster. For example, shaky power can cause electromagnetic interference (EMI). This messes with how electronic control units (ECUs) talk to each other.
Ripple can hurt motor control systems. It causes timing mistakes and makes torque less accurate. In fast EVs or electric buses, this can mean weaker acceleration and more heat. This makes the system less reliable. Also, ripple puts stress on parts. This can damage insulation and shorten the life of power electronics.
Capacitors are great for fixing voltage ripple. They store energy for a bit and release it to balance out changes. They handle fast-switching noise well, which is super important in EV circuits with changing loads. Application: DC Filtering and Smoothing.
In a DC circuit, capacitors act like a cushion. They soak up extra energy during voltage spikes. They release it during dips. This keeps the voltage steady for other parts. It's a big deal for keeping everything running smoothly.
Capacitors clear out high-frequency noise. They give a quick path to ground for unwanted AC signals like ripple. The steady DC part passes through fine. This makes the signal cleaner and cuts down on electromagnetic interference in the EV's power system.
EVs use different capacitors based on what they need, like temperature, voltage, or lifespan. Here are some common ones:
1. Film capacitors are super steady with low equivalent series resistance (ESR). They're great for fast-switching tasks.
2. Ceramic capacitors are small and handle heat well.
3. Electrolytic capacitors hold a lot of charge but might not last as long in high-ripple spots. Used in inverters of wind power and solar power. Transportation: EV or HEV Welders, Elevators, Motor Driver systems.
Motor inverters turn DC from the battery into AC for the motors. This process makes a lot of ripple currents. Capacitors at the inverter's input, called DC link capacitors, keep the voltage steady for the motor.
Power electronics like IGBTs (Insulated Gate Bipolar Transistors) don't like voltage spikes. Capacitors smooth out DC voltage to protect these parts. This stops them from breaking down early.
Battery packs deal with big changes during fast driving or braking. Capacitors help by soaking up extra energy or giving more when needed. This keeps battery cells from getting stressed.
Steady voltage lowers heat stress on battery cells. This helps them last longer. Adding capacitors to battery systems makes charge and discharge cycles more even.

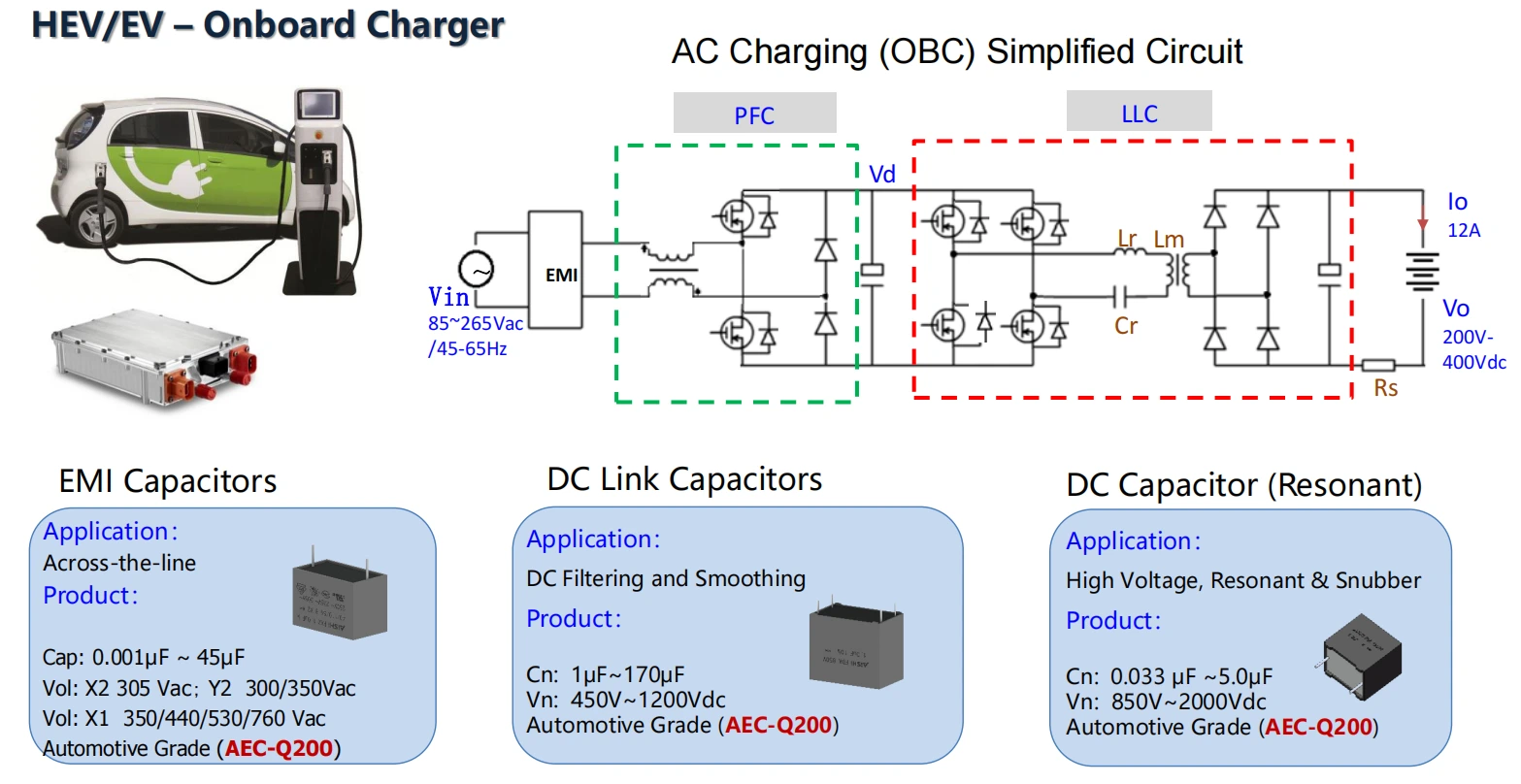

Onboard chargers turn AC from the grid into DC for batteries. Capacitors clean up any leftover ripple. This helps power things like infotainment or lights smoothly.
DC-DC converters lower high-voltage battery power for smaller systems. Capacitors make sure these changes are smooth. This is key for fast-charging systems like CCS or CHAdeMO.
Formula E teams use fancy capacitor setups in their inverters. This gives super-fast response times with less signal mess-up. Smoother voltage means better motor control. This helps teams shave seconds off lap times.
Cities with electric buses save money on fixes. Stable voltage from capacitors means fewer part failures. This also makes buses accelerate more smoothly, which passengers love.
Solar-powered EV charging stations are growing, thanks to plans like the EU Green Deal or China's Dual Carbon Goals. Capacitor banks keep output voltages steady, even when sunlight changes. This makes charging reliable.
SMILER makes top-notch capacitors for things like EVs, renewable energy, and factory machines. Our modern, fully automated production lines ensure everything is made with precision and stays consistent. This keeps quality super high.

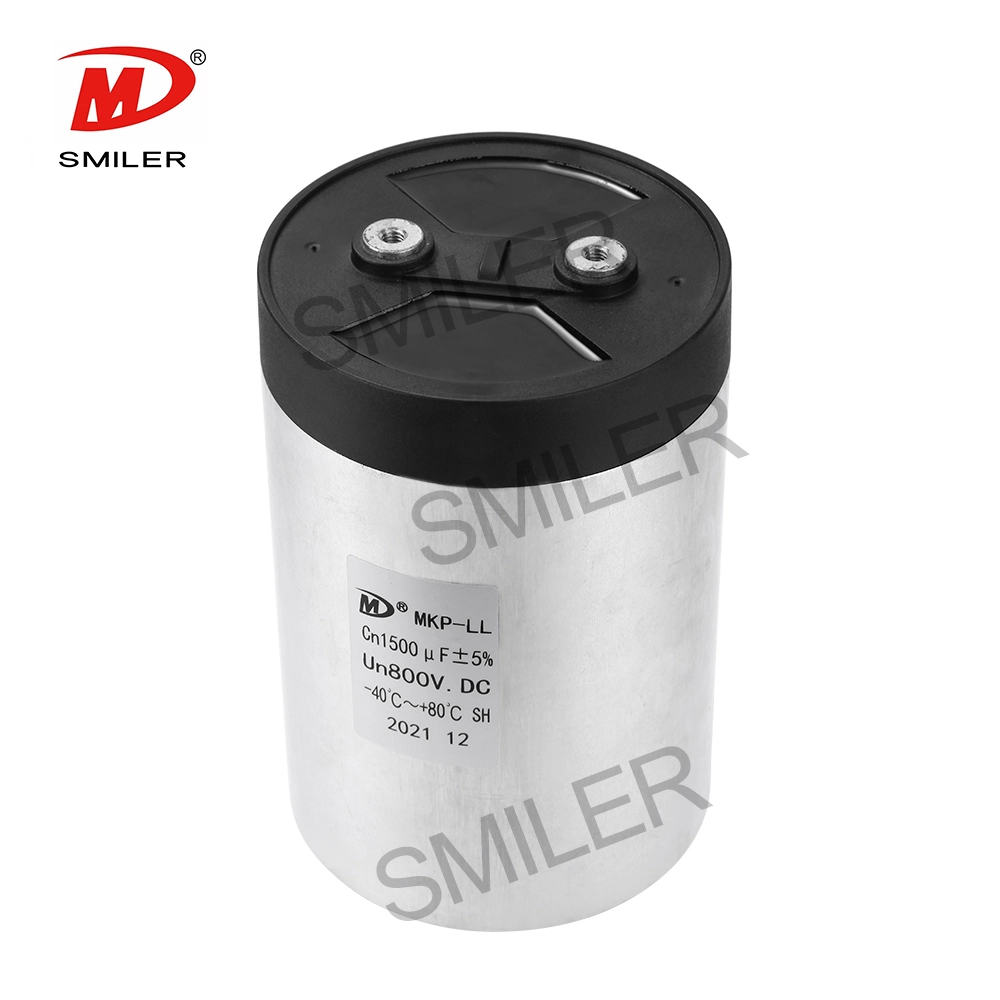

We offer DC-Link Capacitor-DC Link MKP-LL Used in DC-Link circuits. Can replace electrolytic capacitor. Low ESR, high ripple current handling capabilities. Low Ls, Self-healing property, Long lifetime. These features make them perfect for tough EV environments where heat changes a lot. Plus, we keep the quality of finished products above 99.93% with a daily output of 300,000 units. This reliability is great for big projects.
Used in inverters of wind power and solar power. Transportation includes EV and HEV welders, elevators, and motor driver systems. SMILER's capacitors work well in EVs and renewable energy setups. You see them at big shows like InterSolar Europe or CES Las Vegas, where green tech and mobility meet.
Q: Why is it necessary to smooth DC voltage in electric vehicles?
A: Smoothing keeps sensitive systems like motor controls and battery units working right by stopping harmful voltage ripples.
Q: How do capacitors help reduce electrical noise in EV circuits?
A: Capacitors clear out high-frequency noise. They send it to the ground while letting steady DC flow through.
Q: What happens if you don't use capacitors for smoothing in an inverter system?
A: Without capacitors, inverter output gets messy. This can make motors act weird or hurt electronic parts.
Q: Can smoothing improve charging speed at EV stations?
A: Yup. Steady charger output makes energy transfer faster and protects the vehicle's electronics.
Q: Are film capacitors better than electrolytic ones for EV applications?
A: Film capacitors last longer and handle fast-switching better, which is common in modern EVs.
