Fan capacitors are key parts in electric fans and HVAC motors. They help these devices start and run smoothly. Without them, motors may struggle to move or stop working entirely.
A fan capacitor is an important electrical component that causes electric fans and HVAC motors to initiate and operate efficiently. A fan capacitor is an electric component which helps motor operation for electric fans, air conditioners, and heat pumps. It keeps electric power for a short period of time. Then it supplies the power to give the motor the push it needs to initiate operation. If it does not exist, the motor can either not start or operate.
Fan capacitors have two jobs in single-phase motors. They help in the motor's initial starting and continued running in a proper state. The fan capacitor helps in providing enough energy to drive a motor in an HVAC system and keep it running at its required speed for optimal efficiency. Motors need an ample supply of current when they begin. Without control, this can overheat the motor. The capacitor gives this burst in a safe way. It helps the motor get past its starting resistance. Once running, it balances the electric load. This improves power use and cuts energy waste.
In fan systems, capacitors are split into start or run types based on their job. Start capacitors give a quick push to get the motor going. They turn off soon after. Run capacitors stay in the circuit all the time. They keep things running smoothly. CBB61 Capacitor is made by winding metalized polypropylene film, with a non-sensitive structure and encapsulated in flame-retardant plastic or aluminum shells. Application: Used for starting and running single-phase motors powered by a 50/60Hz AC power supply. This makes run capacitors vital for steady torque and speed control.
Fan capacitors work in special ways to help motors run. They handle energy in AC circuits to keep things steady.
Fan capacitors work on alternating current (AC) circuits. They charge and discharge as fast as the voltage flips. This creates a phase shift between voltage and current. The shift is key to making spinning magnetic fields in single-phase motors. They store energy in an electric field between two metal plates split by a special material. This helps control current flow and keeps the circuit stable.
The phase shift from fan capacitors is central to good motor work. In single-phase motors, this shift between main and extra windings acts like a two-phase supply. It makes the motor spin. Also, capacitors fix the power factor by cutting wasted power in the circuit. This leads to less energy loss and better motor performance.

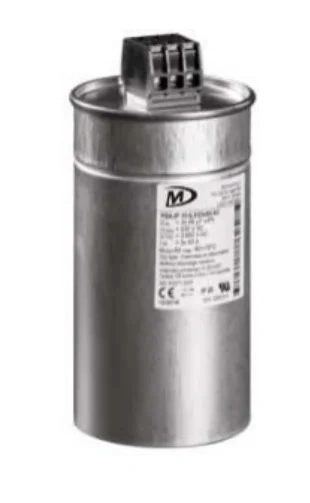

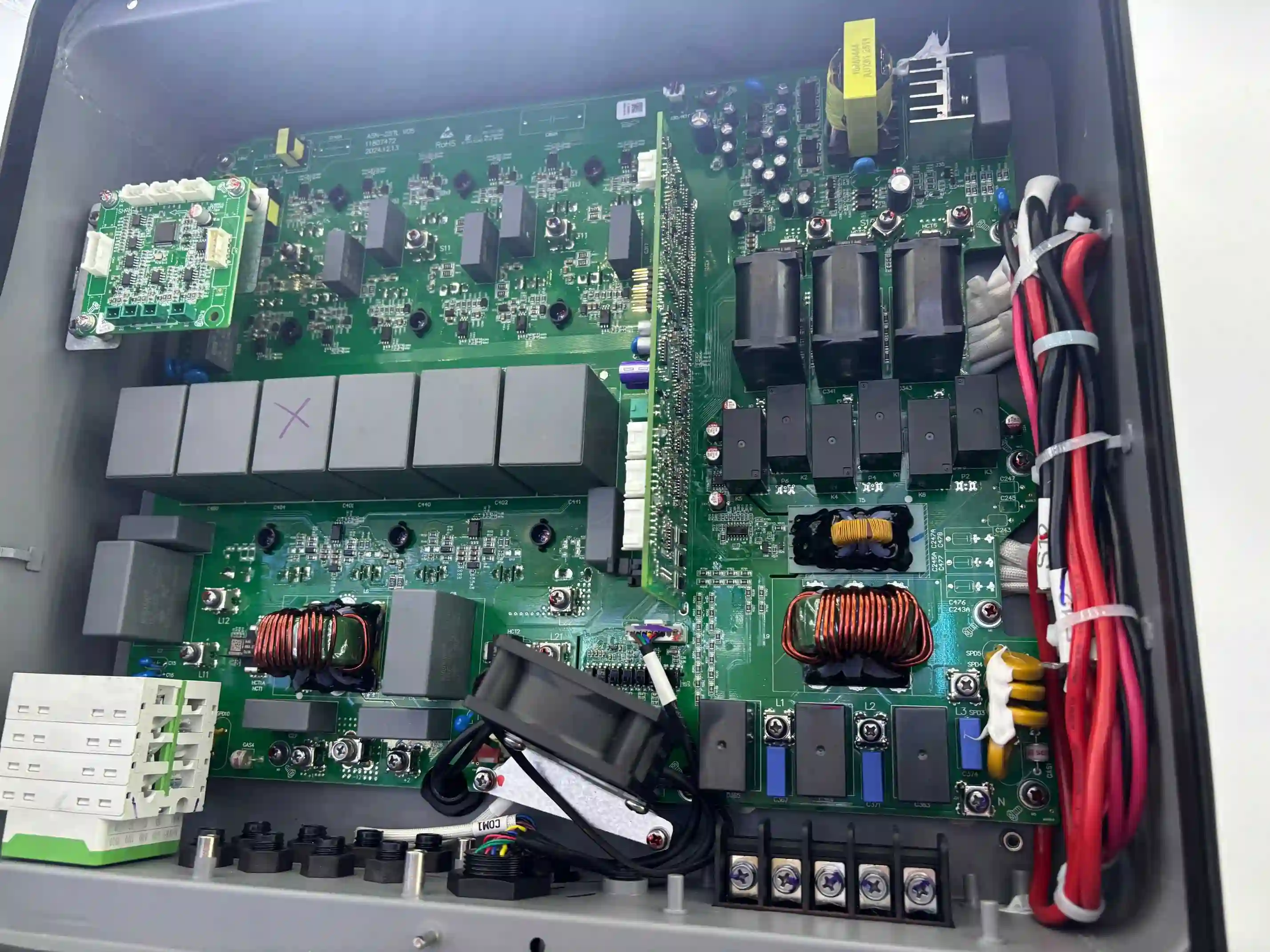

Fan capacitors usually connect in series with the motor's extra winding. In some setups, like HVAC units, both start and run capacitors work together. CBB65 Capacitor is made by winding metalized polypropylene film, with a non-sensitive structure and aluminum shell packaging. These setups give the right starting push and keep steady work under changing loads.
Fans that don't start often point to capacitor issues. These can show clear signs and need checking.
A bad fan capacitor shows up in clear ways. You may experience humming sounds, observe slow or no blade rotation, overheating, or observe uneven operation. If your HVAC system does not operate as efficiently as it used to even when routine maintenance activities have been performed, then this may be another indication that your capacitors are due to be replaced or repaired in the near future. These happen because the capacitor can't hold or release energy well anymore.
Techs use simple ways to spot bad fan capacitors. A common step is checking capacitance with a multimeter. This sees if it's within the rated range, usually ±5% or ±10%. Looking at the capacitor is also key. Bulging, leaking, or cracked shells mean failure. If you notice any signs of wear, such as cracks on the surface of the casing or loose connections, then you should have your capacitors checked by a professional immediately.
Outside factors like heat, wet air, dust, or power spikes can hurt capacitors faster. Climatic category: 40/70/21 40/85/21 shows these parts are rated for certain heat ranges. Going over these cuts life a lot. Good airflow and regular care help reduce these risks.
Picking the right fan capacitor needs careful thought. You must match it to the motor's needs.
When choosing fan capacitors, look at capacitance (in microfarads), rated voltage (in VAC), tolerance levels, and size. Rated voltage（VR): 110V, AC-600V, AC (50/60Hz) and Capacitance tolerance: ± 5% (J) ± 10% (K) are standard specs. These must meet or beat motor needs. A too-small capacitor can cause poor running or motor failure.
To work right, match the capacitor's ratings to the motor's nameplate specs. A slightly higher rating might be okay, but too low is bad. Steady state overvoltage: long-term operation under 1.1Un is allowed, giving a guide for safe differences during use.
Different jobs need different capacitor traits. Home ceiling fans often use low-capacitance units like 2μF–4μF. Factory exhaust systems may need higher-rated parts for heavy loads. HVAC units often use dual-run capacitors for both compressor and fan motors. Applications: Air conditioner, washing machine, dishwasher, fan, and other electrical appliances. Starting and running various compressors.
Keeping and swapping fan capacitors needs care. Safety and the right steps are key.
Before checking or replacing a capacitor, always cut power at the breaker panel. Discharge the capacitor with an insulated resistor to avoid shock. Wear gloves and safety glasses when handling parts.
Replacement basic tools like screwdrivers, multimeters, needle-nose pliers, and perhaps zip ties for mounting are needed for replacement. After tests have confirmed failure, remove wires from terminals (record their positions), remove the faulty unit, insert a new one of the same rating, reconnect wires securely, and test the system.
Regular care includes cleaning dust from fan cases, checking wire conditions, ensuring good airflow around parts, and testing capacitance now and then. These steps help parts last longer and stop sudden failures.
SMILER builds fan capacitors that are tough and precise. We focus on quality for many uses.
SMILER is dedicated to producing high-quality fan capacitors engineered for durability and precision. Our expertise lies in developing components that meet stringent international standards while offering excellent performance across various applications.
Our capacitors have strong features for reliable use.
Features: High stability, good self-healing ability, high reliability ensure that SMILER capacitors perform reliably even under thermal stress. Low loss and low internal temperature rise contribute to extended operational lifespan.
Our products use metallized polypropylene film. This gives steady capacitance even with changing loads. It keeps motor work stable without sudden efficiency drops.
SMILER's range includes various form factors like 48×19×28 mm and 70×38×52 mm sizes, allowing easy integration into space-constrained designs across residential or industrial systems.
A: A fan capacitor stores electrical energy and releases it to help start the motor and maintain its efficient operation. It stores energy to help the motor start up and run efficiently.
A: Common signs include humming noises without blade movement, slow startup, overheating motors, or inconsistent performance. Visual inspection for bulges or leaks is also helpful.
A: Match capacitance (μF), voltage rating (VAC), and tolerance with your motor's specifications. Overrating slightly is acceptable; underrating is not recommended.
A: Brands like SMILER are known for producing high-reliability fan capacitors with features such as self-healing properties, stable capacitance under load, and long service life.
A: They serve different purposes—start capacitors provide initial torque while run capacitors ensure continuous operation. Many systems require both for optimal performance.
